2D SERIES

2DV

DOUBLE DEFLECTION GRILLE

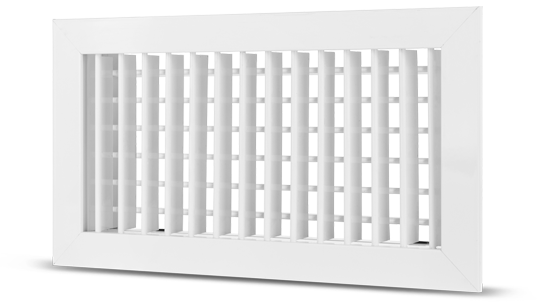

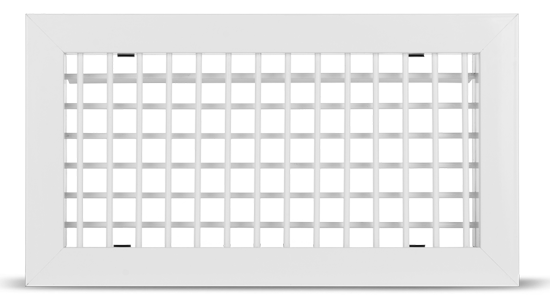

Model 2DV. Double deflection grille with vertical movable blades on 1st deflection and horizontal on 2nd deflection

Made of extruded aluminium. Standard finish in matt silver anodised or white lacquer similar to RAL 9016. Other colours available on request.

Fixing systems:

(C)	Clip (standard)
(T)	Visible screw (optional)
(P)	Concealed screw fixing (optional)

Accessories:

(MM)	Aluminium mounting frame Hole dimensions (L+7) x (h+7)
(X)	Control damper, horizontal blades parallel to the L dimension. Type CRX
(Z)	Volume control damper, vertical blades parallel to H. Type CRZ
