4SH

4S SERIES

4SH

IMPULSIÓN
TECHO
MÓVIL
PARED
UNIDIRECTIONAL CURVED BLADE GRILLE

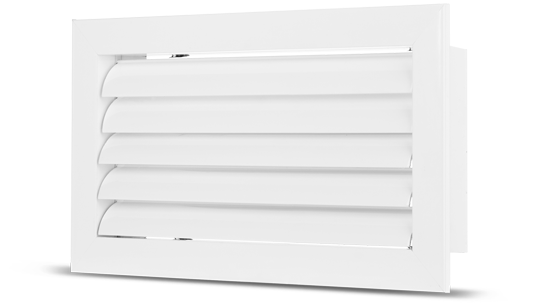

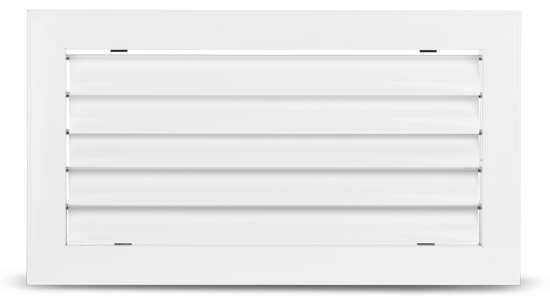

Model 4SH. Grille with curved horizontal movable blades, unidirectional.
Made of extruded aluminium. Standard finish in matt silver anodised or white lacquer similar to RAL 9016. Other colours available on request.

Fixing systems:

(C) Clip (standard)
(T) Visible screw (optional)
(P) Concealed screw fixing (optional)

Accessories:

(MM) Aluminium mounting frame
Hole dimensions (L+7) x (h+7)
(X) Control damper, horizontal blades parallel to the L dimension.
Type CRX
(Z) Volume control damper, vertical blades parallel to H.
Type CRZ
