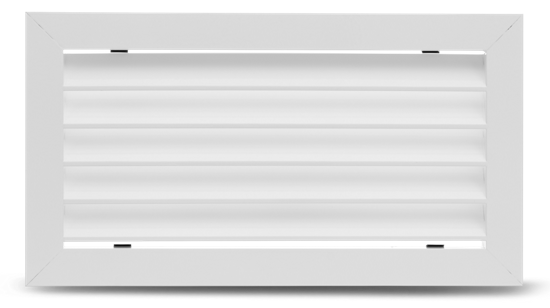

CARR-8FH-2

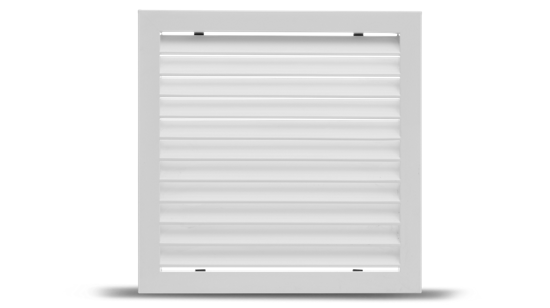

CARR-8FH-3

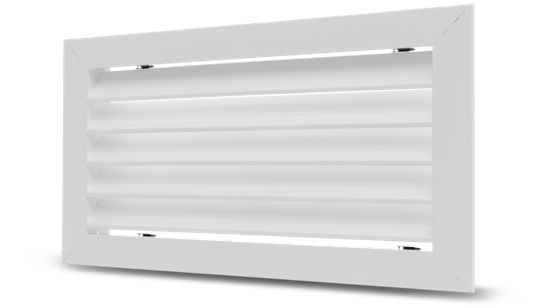

CARR-8FH-1
GRILLE WITH FIXED BLADES AT 45º
Model 8FH. Grille with fixed flat Blades at 45º.
Model 8FHM. Grille with fixed flat blades at 45º, with galvanised mesh.
Model 8FHF. Grille with fixed flat blades at 45º, with G3 filtering mat.
Made of extruded aluminium. Standard finish in matt silver anodised or white lacquer similar to RAL 9016. Other colours available on request.

Fixing systems:

(C) Clip (standard)
(T) Visible screw (optional)
(P) Concealed screw fixing (optional)

Accessories:

(MM) Aluminium mounting frame
Hole dimensions (L+7) x (h+7)
(X) Control damper, horizontal blades parallel to the L dimension.
Type CRX
(Z) Volume control damper, vertical blades parallel to H.
Type CRZ
