9R SERIES

9RO – 9RI

RETORNO
TECHO
FIJO
PARED
pdf_2
bim_2
dxf_2
CARR-9RO-1
CARR-9RO-2
CARR-9RI-1
CARR-9RI-2
EGG-CRATE

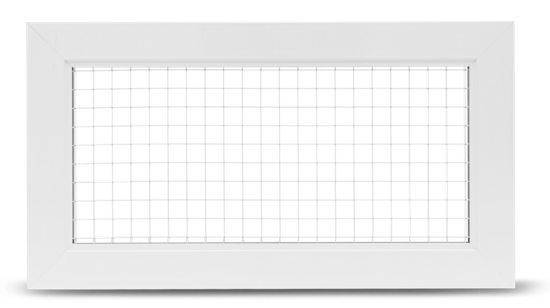

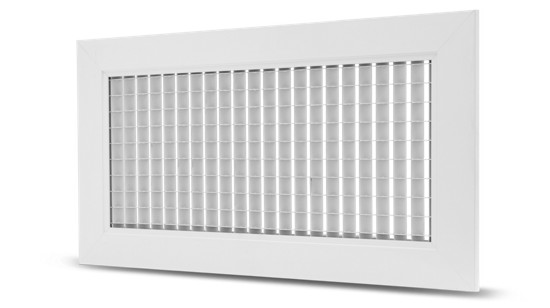

Model 9RO. Egg-crate grille at 0.

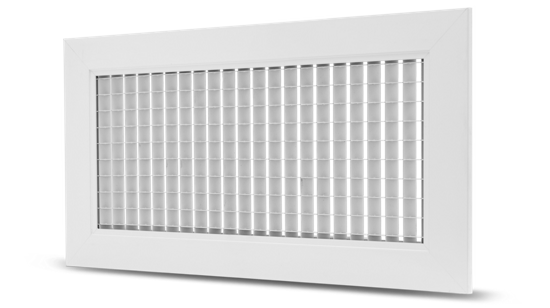

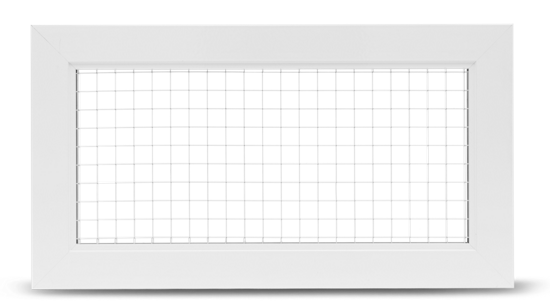

Model 9RI. Egg-crate grille at 45º.
Made of extruded aluminium. Standard finish in matt silver anodised or white lacquer similar to RAL 9016. Other colours available on request.

Fixing systems:

(C) Clip (standard)
(T) Visible screw (optional)
(P) Concealed screw fixing (optional)

Accessories:

(MM) Aluminium mounting frame
Hole dimensions (L+7) x (h+7)
(X) Control damper, horizontal blades parallel to the L dimension.
Type CRX
(Z) Volume control damper, vertical blades parallel to H.
Type CRZ
