INSUMESCENT COLLAR
Model CI.Protecta® FR Collars are designed to maintain the fire resistance of fire rated walls and floors where these are breached by service penetrations, and may be used in drywalls, timber, masonry or concrete walls and floors.

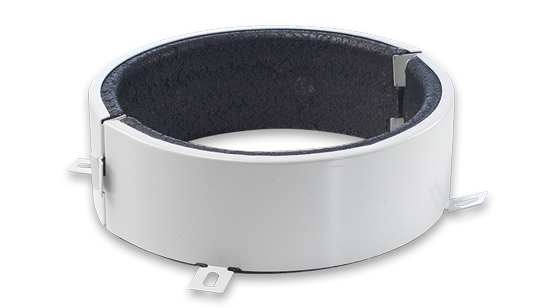

Each collar consists of a white or red coated circular steel shell that splits in two to fit around the service penetrations by means of a simple ’slide-lock’ system. The steel shell contains a graphite based reactive material which reacts when exposed to heat from fire closing the openings left by the softening combustible material. .

Porperties:

High end fast expanding patented graphite material, certified Worldwide .
Classified for fire sealing all types of constructions such as drywalls, masonry and concrete walls, concrete and composite floors, and solid or cross-laminated timber walls and floors .
Classified for fire sealing all types of building service penetrations such as cable bundles, cable conduits, steel pipes, copper pipes, composite pipes, PVC pipes, PE pipes, ABS pipes, PP pipes and PEX pipe-in-pipes .
Metal and plastic pipes are classified with commonly used elastomeric pipe insulations, continuous through the fire seal .
Approved plastic pipe sizes range from smallest pipes available to Ø 400mm, each with a wide range of pipe wall thicknesses .
Approved with a single collar in some concrete and masonry wall applications, reducing cost .
Collars are available in two different heights for different fire classifications to maximise cost efficiency .
Smaller pipes can be fitted within larger collars with the benefit of accommodating pipes that are at an angle, or if the opening around the pipe is too large .
Fire classifications up to 240 minutes for both integrity and insulation.
Tested and certified for U/U pipe end applications.
Very high sound insulation.
Causes no deleterious effects on cPVC pipes like BlazeMaster, supported by mechanical testing evidence .
No emissions - environmentally and user friendly.
Simple to install using widely available standard fixings.

Technical specifications:

Condition: Ready for use, steel housing with a graphite material.
Shell: 1 mm powder-coated steel.
Conditioning procedure: EN 13238:20100
Expansion ratio 17:1
Expansion pressure 65.4 N
Graphite weight 1.4 Kg/m2 per mm thickness.
Graphite density : 1409 Kg/m3
Normal expansion time : less than 2 minutes.
Minimum expansion temperature : 105 °C
Durability : Z2, intended for use in indoor conditions with humidity other than Z1, excluding temperatures below 0°C.
Life : Under normal conditions; 30 years +
Storage: May be stored for a long period of time. To be stored in temperatures between 5˚C and 30˚C
Installation temperature. 5°C to 50°C (sealant)
CE marking classification : ETA-18/0854

Classifications:

• Sound insulation: Rw 58 dB - Collars installed in walls.
• Fire resistance: Up to 4 hours depending on application.

Dimensions:

ø40 a ø315
