FD SERIES

FDMB

FUEGO
COMPUERTA
MARCADO CE
pdf_2
bim_2
dxf_2

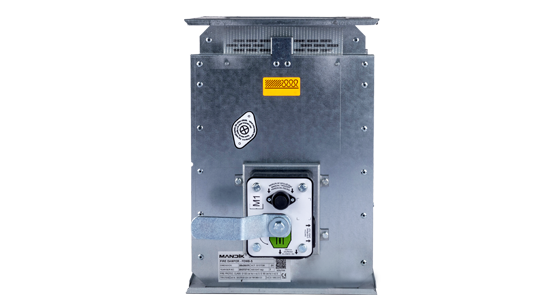

CARR-FDMB

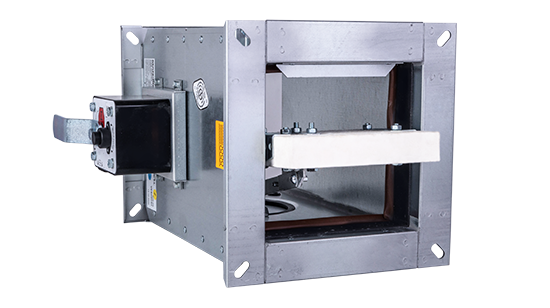

CARR-FDMB-2
FIRE DAMPER
Model FDMB.01. Manual operation and thermal outside of the damper with case of protection.
Model FDMB.40. Electric servomotor 230 v. AC with spring return Belimo BFL/BFN/BF 230-Twith two auxiliary contacts.
Model FDMB.50. Electric servomotor 24 v.AC/DC with spring return Belimo BFL/BFN/BF 24-T with two auxiliary contacts.
The FDMB series rectangular fire dampers work as separators between two fire sectors. They can be installed on both vertical and horizontal walls. They have a perimeter seal at both ends to ensure sealing between the damper and the air ducts.

Characteristics:

CE certified according to EN 15650.
Tested according to EN 1366-2.
Classified according to EN 13501-3+A1.
Fire resistance EIS 120, EIS 90.
Leakage according to EN 1751:
Outer casing classes B and C.
Inner casing class 2.
Cycle test class C 10000 according to EN 15650.
Corrosion resistance according to EN 15650.
EN Certificate of Conformity No. 1391-CPR-2020/0004.
Declaration of Compliance No. PM/FDMR/01/21/1 Hygienic evaluation of fire dampers report No. 1.6/pos/19/19b.

Dimensions:

200x200 mm a 1000x500 mm
