RDR SERIES

RDR

ADJUSTABLE FLOW REGULATORS

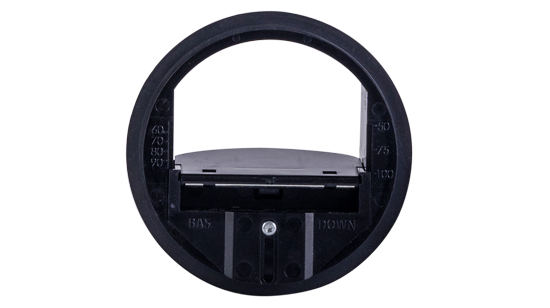

Model RDR. The RDR flow regulator is an element that is placed inside the duct to obtain a constant flow rate within a pressure range of 50 to 250 pascals and is used in air-conditioning or ventilation systems in both extract and supply mode.

Characteristics:

Self adjusting on the pressure range 50 to 250 Pa.

Easy adjustment.

The requested air fl ow is fi xed by a screwdriver «torx n°10».

Made in plastic material (classifi ed M1).

Use with a maximum temperature of 60°C.

Presentation:

The self adjusting fl ow regulator RDR can be adjusted on sites according to the requested air flow.

The marks on the sides of the opening indicate the settings.

Models:

from ø80 to ø250 mm.

Adjustment:

Before setting the regulator, it’s necessary to calibrate the flow:

Using a T10 Torx screwdriver, loosen the screw on the adjustment module by one-quarter turn.

Set the cursor (on the left or right) to the desired fl ow rate.

Retighten the adjustment module locking screw.
