RPM-V SERIES

RPM-V

COMPUERTA
MARCADO CE
pdf_2
bim_2
dxf_2

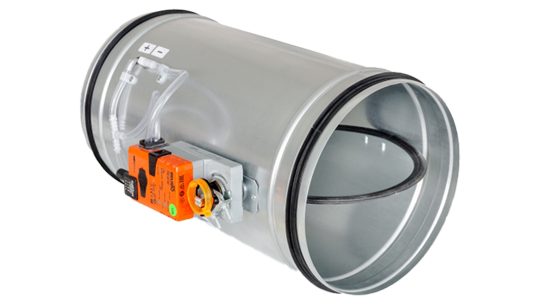

CARR-RPM-V
ROUND VARIABLE AIRFLOW REGULATOR
Model RPM-V. The air volume controllers are meant for systems with a variable air volume that is used for input or output air. The required amount of air that is taken into the individual rooms or working areas is variable with respect to time and can be changed according to momentary need when the controllers are installed. Total power of air-conditioning system can be lower. This variable systems enable a more economical operation air-conditioning systems and while ensuring individual well-being on the premises setting.
The controller consists of the body of the controller with a control blade and pressure probes for determining the through-flow of air. An compact controller is affixed to the body for controlling the control blade.

Controller characteristics:

Type of regulation:
- control air flow
- control of pressure in the duct
- control of pressure in the room
Nominal size: ø 80 to ø 630
Length: L = 450 to 600 mm depending on nominal size
Tightness: in accordance with EN 1751
External casing leakage class C
Tightness through the damper blade: Class 4.
Air flow rate: 18 ÷ 7.900 m³/h 18 ÷ 7.900 m³/h (for 12m/s is max. Air flow vol. 13.500 m³/h*) maximum air flow volume of 13 500 m³/h*)
Accuracy: ± 8 % for velocity up to 3 m/s and ± 5 % for higher velocity.
Air velocity: Standard set-up is in range from min. 1 m/s to 7 m/s by Belimo.


Models:

RPM-V.01 For control with signal 0(2)...10 V or MP-BUS protocol.
RPM-V.02 For control with signal 0(2)...10 V or using Modbus RTU protocol, BACnet or MP-BUS.

Working conditions:

The faultless functioning of the controllers is ensured under the following conditions:
a) maximum speed of air flow 7 m/s.
b) maximum pressure in the duct 1000 Pa.
c) the air circulation in the whole controller section must be secured as steady on whole surface - see point 4.1.
Controllers are designed for macroclimatic areas with mild climate according to EN 60 721-3-3.
Controllers are suitable for systems without abrasive, chemical and adhesive particles.
Temperature in the place of installation is permitted to range from 0°C to +50°C.
The controllers are supplied without insulation or in an insulated design. Insulation thickness is 50 mm.
