6L SERIES

6LD-1 – 6LD-2

RETORNO
IMPULSIÓN
LINEAL
TECHO
PARED
pdf_2
bim_2
dxf_2

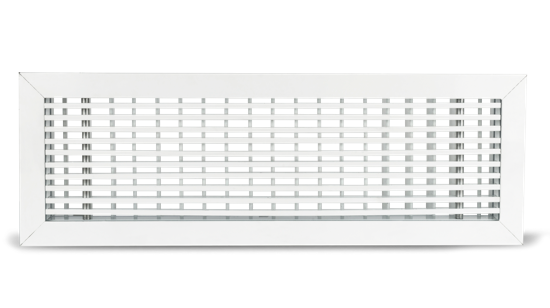

CARR-6LD-1

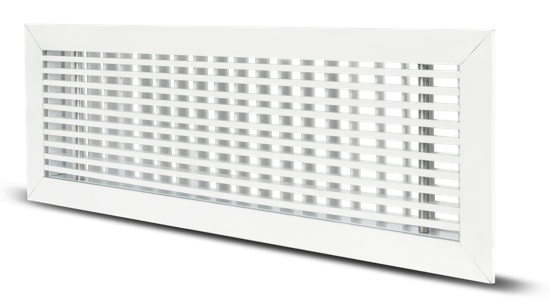

CARR-6LD-2
DOUBLE DEFLECTION LINEAR GRILLE
Model 6LD-1. Linear grille with fixed blades at 0º with double deflection.
Model 6LD-2. Linear grille with fixed blades at 20º with double deflection.
Made of extruded aluminium. Standard finish in matt silver anodised or white lacquer similar to RAL 9016. Other colours available on request.

Fixing systems:

(C) Clip (standard)
(T) Visible screw (optional)
(P) Concealed screw fixing (optional)

Accessories:

(MM) Aluminium mounting frame
Hole dimensions (L+7) x (h+7)
(X) Control damper, horizontal blades parallel to the L dimension.
Type CRX
(Z) Volume control damper, vertical blades parallel to H.
Type CRZ
