6L SERIES
6LR-1 – 6LR-2 – 6LR-R
REDUCED FRAME LINEAR GRILLE

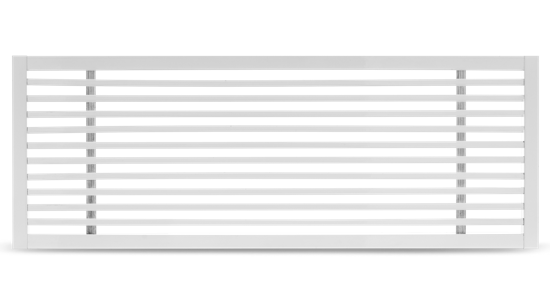

Model
6LR-1
. Linear grille with fixed blades at 0º with reduced frame.

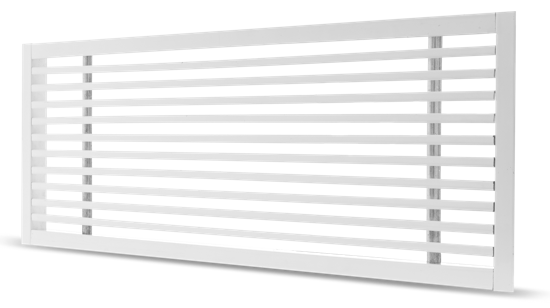

Model
6LR-2
. Linear grille with fixed blades at 20º with reduced frame.
Model
6LR-R
. Linear grille with fixed blades at 45° with reduced frame. For return.
Made of extruded aluminium. Standard finish in matt silver anodised or white lacquer similar to RAL 9016. Other colours available on request.
Fixing systems:
(P)
Concealed screw fixing.
Suitable for installation on 13 to 20mm laminated plaster ceilings.
Accessories:
(Z)
Volume control damper, vertical blades parallel to H.
Type CRZ
