6L SERIES

6LS-1 – 6LS-2 – 6LS-R

RETORNO
IMPULSIÓN
LINEAL
TECHO
PARED
pdf_2
bim_2
dxf_2

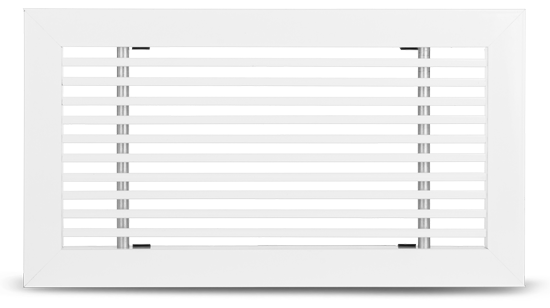

CARR-6LS-1

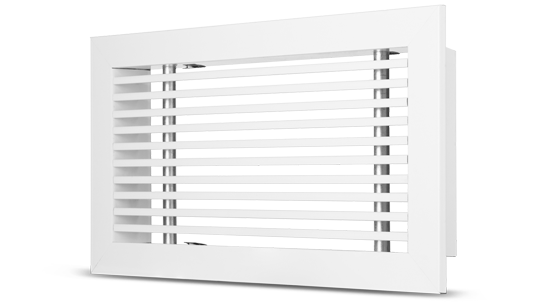

CARR-6LS-2
LINEAR GRILLE
Model 6LS-1. Linear grille with fixed blades at 0º.
Model 6LS-2. Linear grille with fixed blades at 20º.
Model 6LS-R Linear grille with fixed blades at 45º. For return.
Made of extruded aluminium. Standard finish in matt silver anodised or white lacquer similar to RAL 9016. Other colours available on request.

Fixing systems:

(C) Clip (standard)
(T) Visible screw (optional)
(P) Concealed screw fixing (optional)

Accessories:

(MM) Aluminium mounting frame
Hole dimensions (L+7) x (h+7)
(X) Control damper, horizontal blades parallel to the L dimension
Type CRX
(Z) Volume control damper, vertical blades parallel to H.
Type CRZ
