PPS SERIES

PLENUM

ACCESORIOS
FALSO TECHO
pdf_2
bim_2
dxf_2
CARR-PPS-1
CARR-PPS-2
METAL SHEET PLENUM

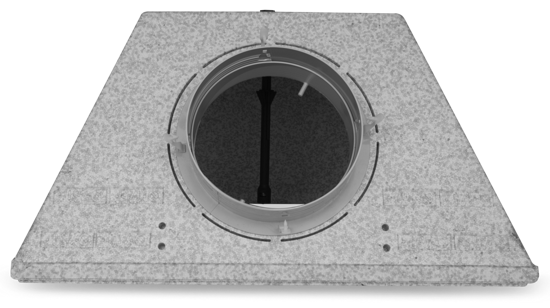

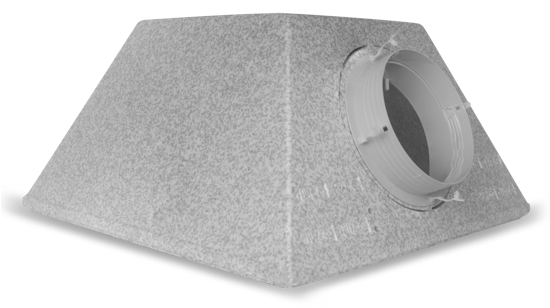

Model PPS-CR. Polystyrene plenum box with duct connection and regulation damper (790 gr).
Model PPS-K. Polystyrene plenum box with duct connection, regulation damper and equalizer plate (990 gr).
The plenum box model PPS, made of polystyrene foam with a density of 45 Kg/mc, approved according to class 1, is configured as a safe and easy to install option thanks to its lightness and great thermo-acoustic insulation.

Characteristics:

Transmission coefficient 0.0318 W/mk
High thermal-acoustic insulation.
Designed to be used with plate diffusers with dimensions 600x600.
Duct connection diameters: Ø160, Ø200, Ø250.
Possibility of incorporating ceiling fixing bracket, model CH-PPS.
Supplied disassembled to optimise storage and transport.
Easy installation, thanks to its lightness.
Time saving in installation.
Space saving of 50% compared to traditional plenum.

Accessories:

CH-PPS. PPS plenum ceiling fixing bracket.
